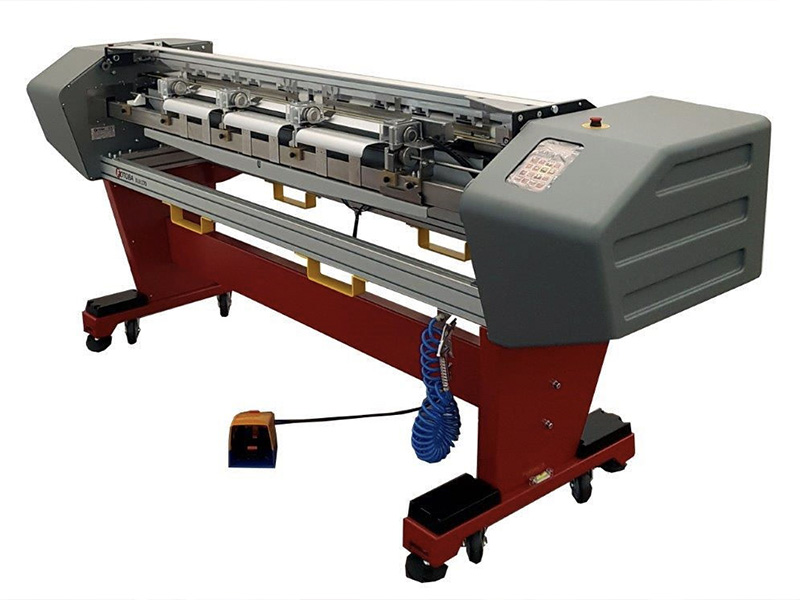

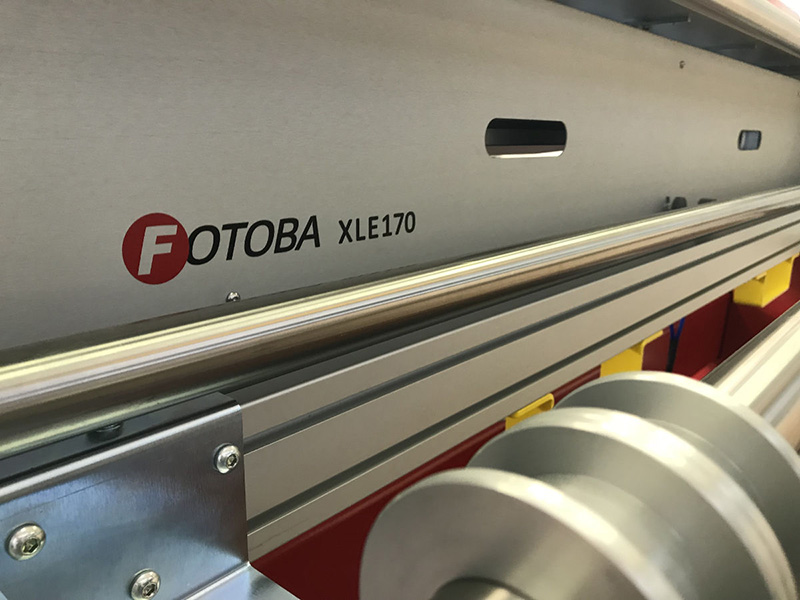

FOTOBA XLE 170 Digital Cutter

The XLE 170 is a simplified version of the XLD 170 standard where the following features have been removed:

  • Digitrim sheet function
  • Automatic X correction
  • The XLE 170 is industrial built, ergonomic and keeps the possibility to add all XLD accessories while being more accessible.

FOTOBA FEATURES

  • Automatic tracking to the image edge (Y)
  • Max linear speed 50-ft per minute

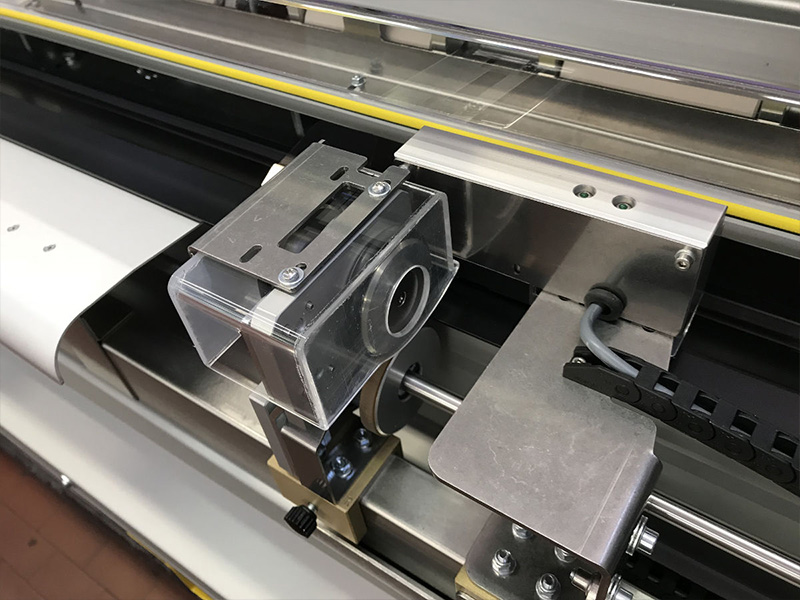

  • Vertical Slitters: Single, 8mm double or adjustable double
  • Cutting by length & quantities for media conversion
  • Memory channels to store different cut marks
  • All mechanism controlled by stepper motors
  • Automatic scanning of cut marks
  • Accuracy +/- 0.5 mm (0.02 in.)
  • Max. Linear Speed 50-ft per minute

FOTOBA CUTMARKS

FOTOBA CUTMARKS are embedded in most popular RIP softwares.

The XL Series can handle media with a maximum thickness of 40 mil including polycarbonate, laminates and encapsulated media, photo paper, vinyl, self-adhesive vinyl, graphic arts film, duratrans, canvas and much more.

OPTIONAL ADD-ON

Rewinding

Automatic In-Line Rewinding Solutions for non-stop production.

Motorized Roll Feeder

Can easily hold 660 lbs.

Request a Demo
Price Inquiry

Technical Specification

Max paper width: 170 cm – 67 in.

Min paper width: 28 cm – 11 in.

Max roll diameter allowed: 26 cm – 10 in.

Max cutting thickness: 1 mm – 0.04 in.

Feeding speed: 50 ft. per min.

X cutting accuracy: No X-axis correction

Y cutting accuracy: 1 mm – 0.04 in.

Net Weight: 550 lbs.

Dimensions: 110″ x 36″ x 44″

Supported RIPs

Download XLD 170 PDF Brochure
